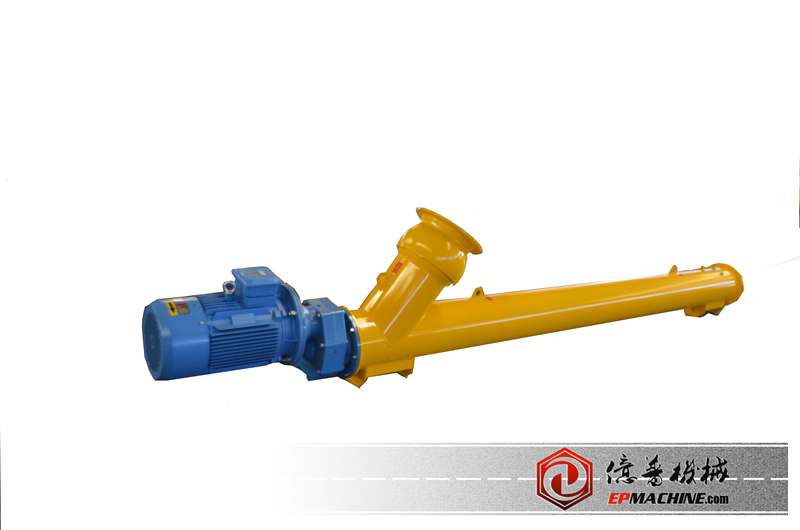

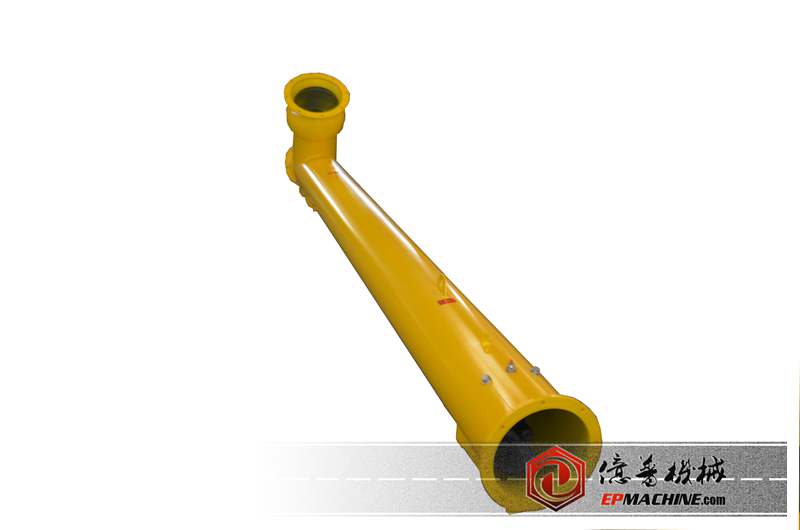

Screw Conveyor

Application range:
1. Adopt high-quality steel pipe with good integral rigidity. 2. Double pitches or three pitches design, which decrease the compression degree of material when being transported, and avoid blocking.

We're here to help:
Easy ways to get the answers you need.

PDF Download

description

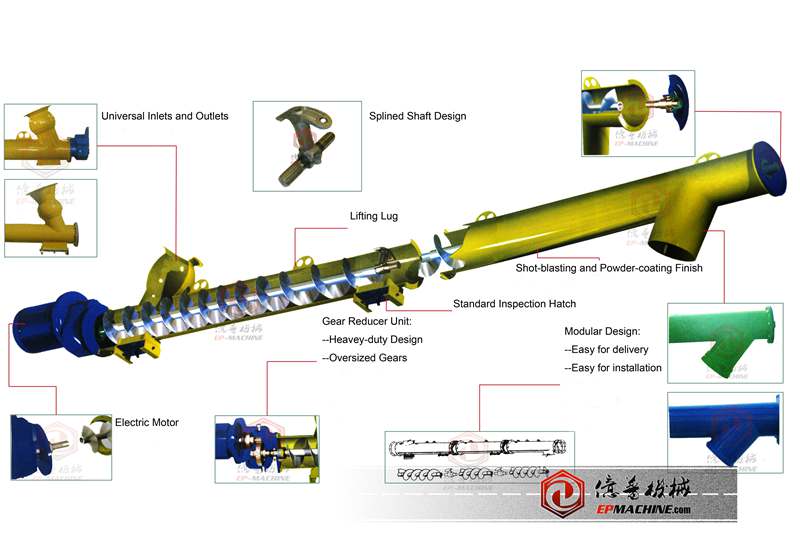

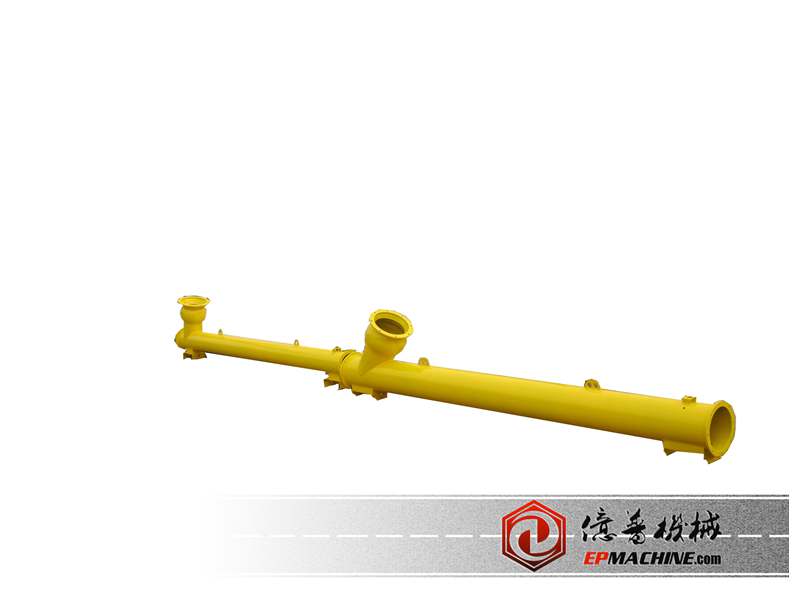

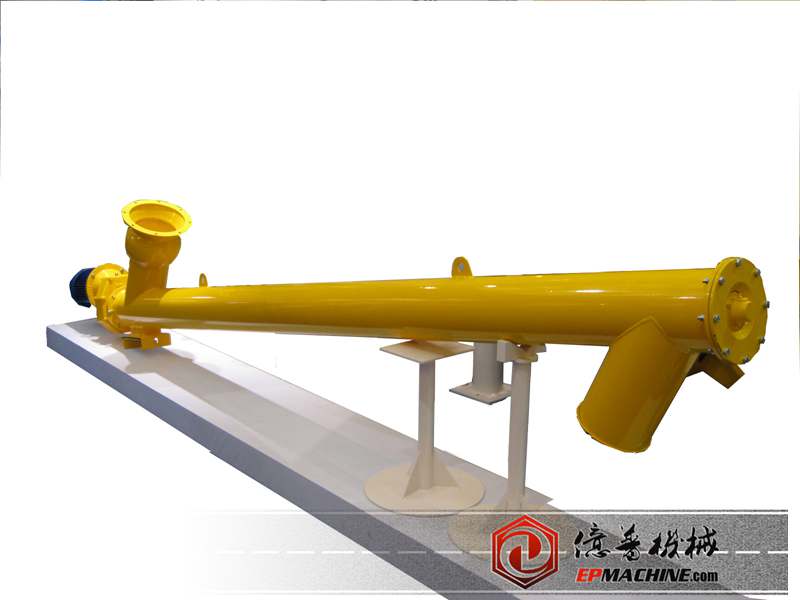

 1. Main Features and Characteristics of screw conveyor

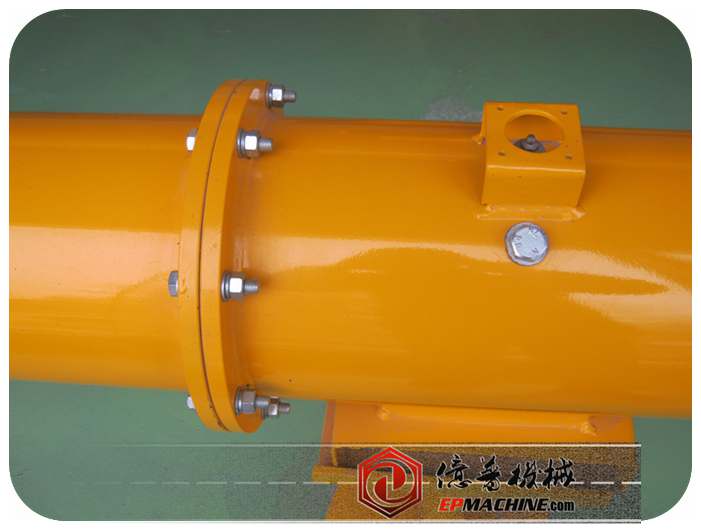

1. Adopt high-quality steel pipe with good integral rigidity.
2. Double pitches or three pitches design, which decrease the compression degree of material when being transported, and avoid blocking.
3. Adopt specially designed reducer for screw conveyor only, Hard finishing, level-one shifting, involute helical tooth, Stable transmission, low noise, large torque, suitable for bad environment work.
4. Adopt optional universal ball joint, which facilitates installation, adjustment and steering.

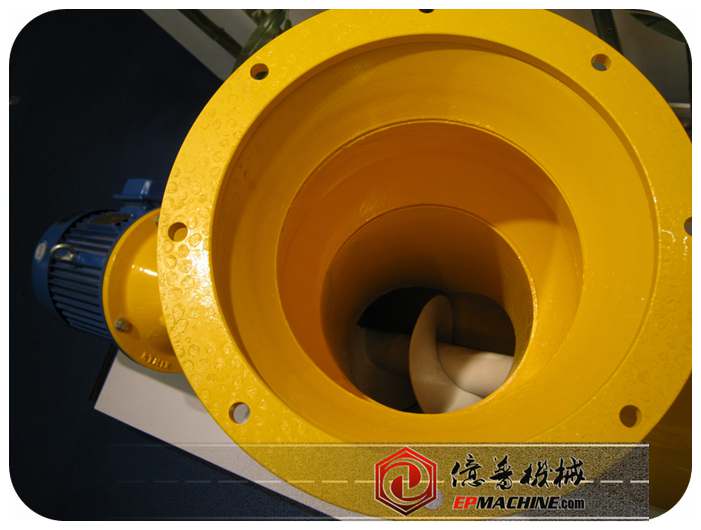

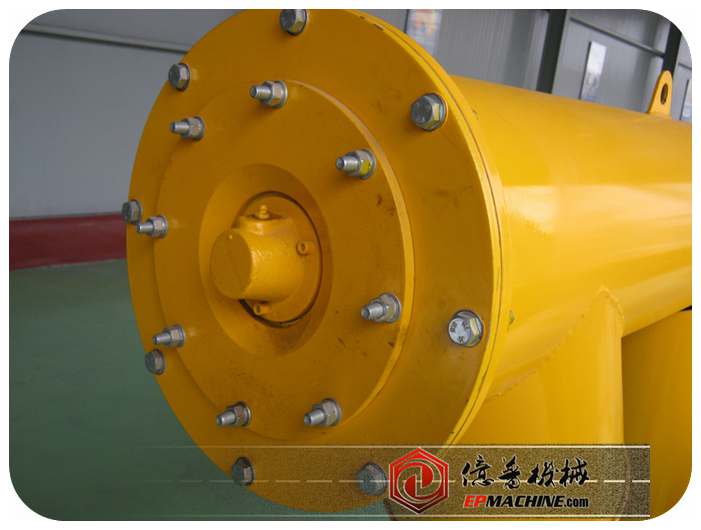

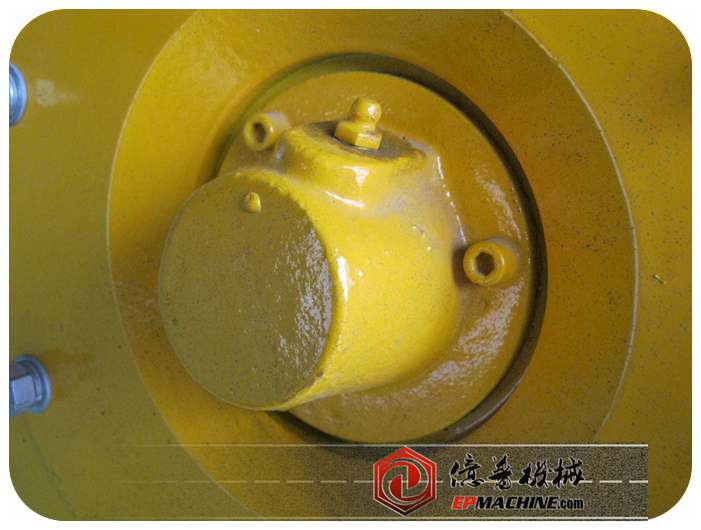

5. Inlet equipped with high-quality middle-hoisting bearing and tail bearing.
6. Sufficient spare parts with complete specification.

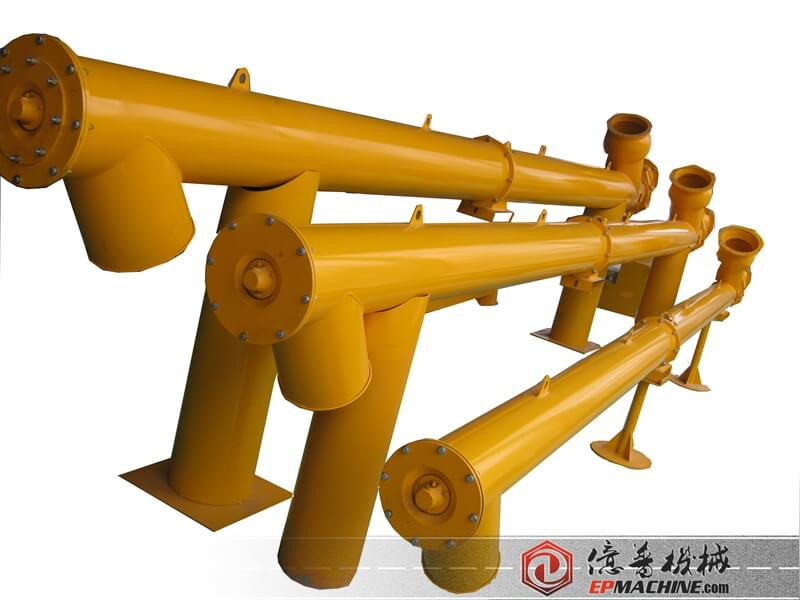

7. Large stock for common diameter of 168,219,273,323and 407,and dimension & angle can be customized according to your requirement.
8. Assembled by standard parts and components, which makes it convenient for transportation.



2. Parameter of screw conveyor

Diameter of outer pipe

Diameter of inlet flange (mm)

Height of inlet (H1)

Height of outlet (H2)

0-20º

>20-40º

>40-50º

0-20º

>20-40º

>40-50º

A

B

C

H1

H1

H1

H2

H2

H2

140mm

200

250

280

400

450

500

250

300

350

168mm

200

250

280

400

450

500

250

300

350

219mm

300

350

380

500

550

600

300

400

450

273mm

300

350

380

500

600

700

350

450

500

323mm

300

350

380

550

700

800

400

500

600

407mm

470

470

530

750

900

1000

450

600

700
