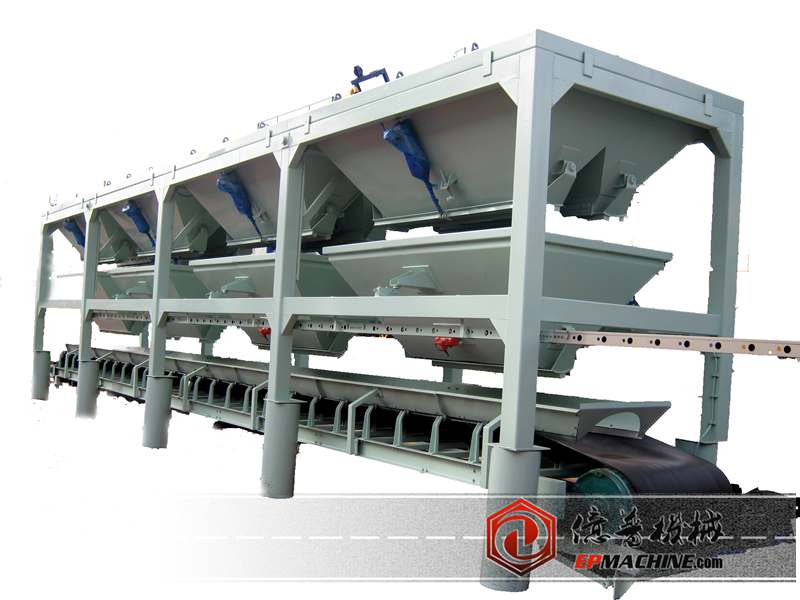

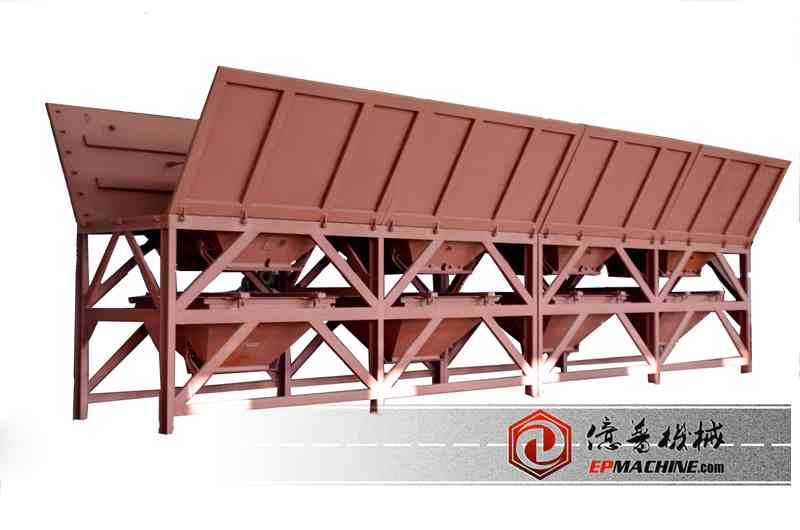

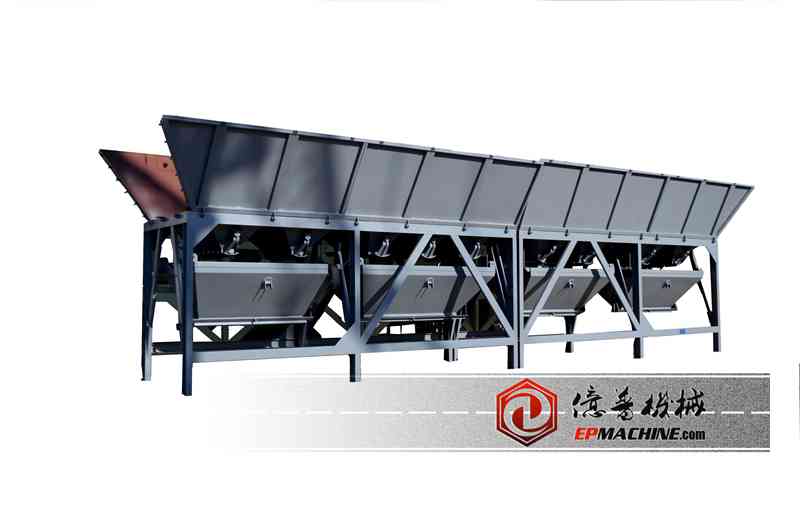

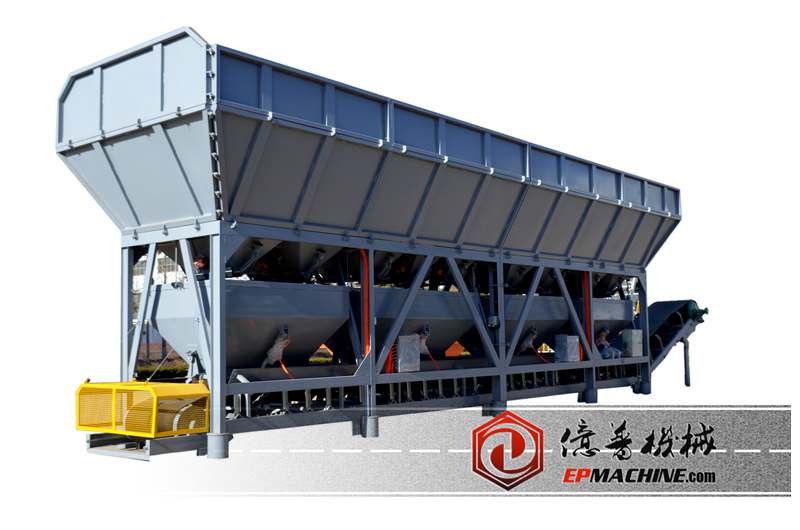

PLD series Aggregate Batching Machine

1. Products Description of aggregate batching machine

PLD series aggregate batching machine is ingredient machinery, which applies to construction sites, roads, bridges and other projects. They can work with concrete mixers which discharging volume is below 6000L. The scaled aggregate can be fed directly into the concrete mixer by lifting hopper or conveyor belt.
Aggregate batching machine weighing system uses weight control devices and sensors, can be quantified materials, ingredients and control, and automatically modify the gap.

2. Main classification of aggregate batching plant

1. According to material quantity: 2 bins, 3 bins, 4 bins
2. According to measurement type: Various material by cumulative measurement, Each material by independent measurement
3. According to discharging method: Electrical conveyor belt, Pneumatic air cylinder

3. Main Features of aggregate batching plant

1.the batching machine coarse, fine weighing, high weighing precision.
2.The batching machine with excellent performance of weighing sensor, weighing accuracy, stability.
3.The mixing station supporting the main piece of equipment used at home and aboard well-known brand, high reliability.
4.The whole equipment, reasonable structure, strong rigidity and beautiful.
5.The mixing of conveying machinery smoothly, ensure the normal supply.
6.At the same time weighing 4 kings of aggregate, the measurement time is short, high efficiency.
7.Belt machine head is provided with a stopper cover, effectively preventing the material spraying.

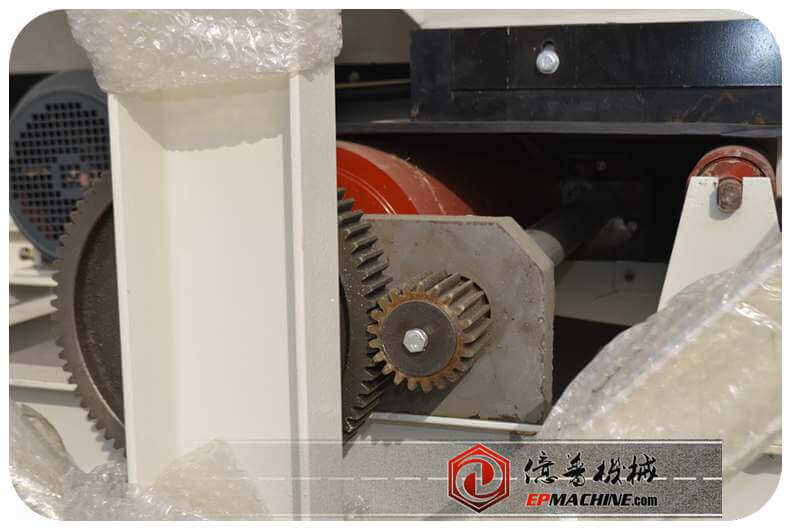

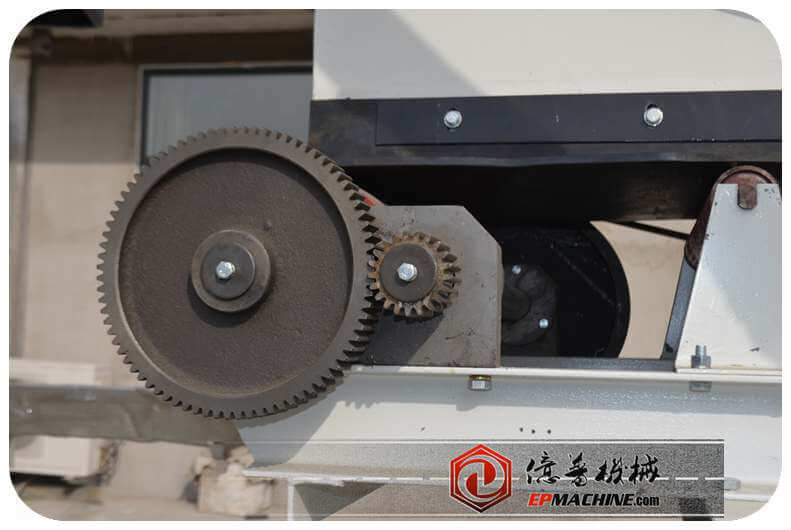

8.The tail is provided with a screw tension device, can adjust the tension of the belt at any time, convenient and quick.
9.In the sand and sand said side wall bucket are provided with a vibrator, conducive to the rapid weighing and fast discharge.

4. Technical parameters of aggregate batching plant

Item	PLD800	PLD1200	PLD1600	PLD2400	PLD3200	PLD4800
Weighing bucket capacity	800L	1200L	1600L	2400L	3200L	4800L
Hopper capacity	2*1.2m3	3*2.5m3	3*3m3	3*12m3	3*20m3	4*25m3
Production rate	48m3/h(dry material)	56m3/h(dry material)	75m3/h(dry material)	120m3/h(dry material)	160m3/h	280m3/h
Batching accuracy	±2%	±2%	±2%	±2%	±2%	±2%
Maximum weighing value	2000kg	3000kg	3000kg	4000kg	5000kg	8000kg
Ingredients species	2-3	2-4	2-4	2-4	2-4	2-4
Feeding height	2400mm	2900mm	2900mm	4250mm	4500mm	2300mm
Feeder belt speed	1m/s	1m/s	1m/s	1.6m/s	1.6m/s	1.25m/s
power	3×3=9kw	4×3=12kw	3×4=12kw	7.5kw	11kw	18.5kw
Total weight	2450kg	4500kg	5600kg	8500kg	10200kg	14000kg
