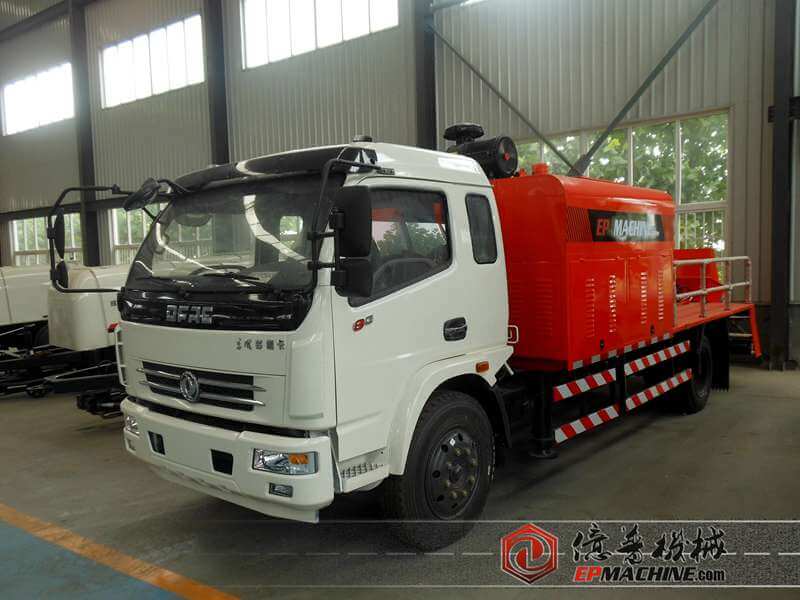

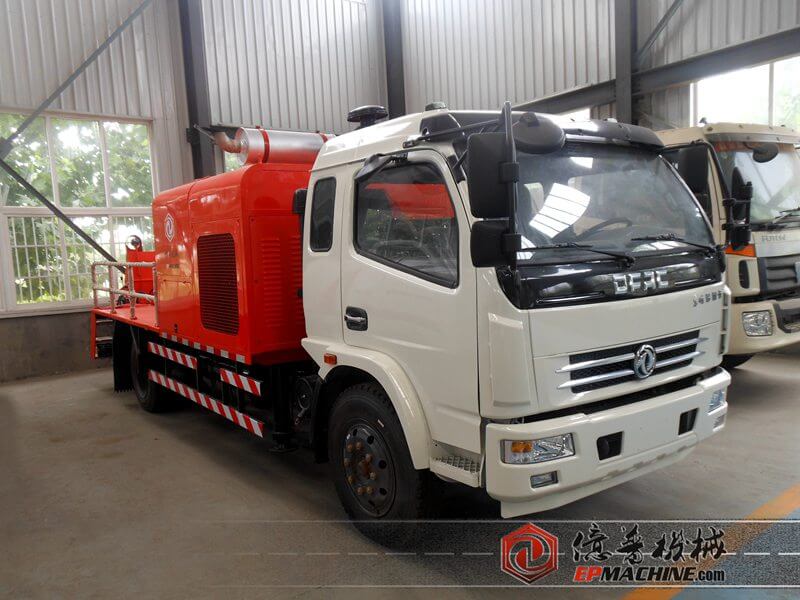

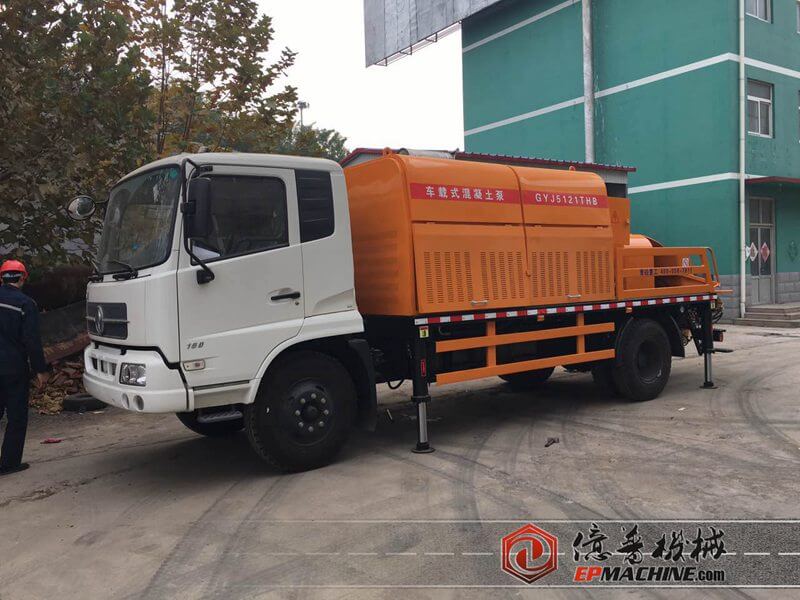

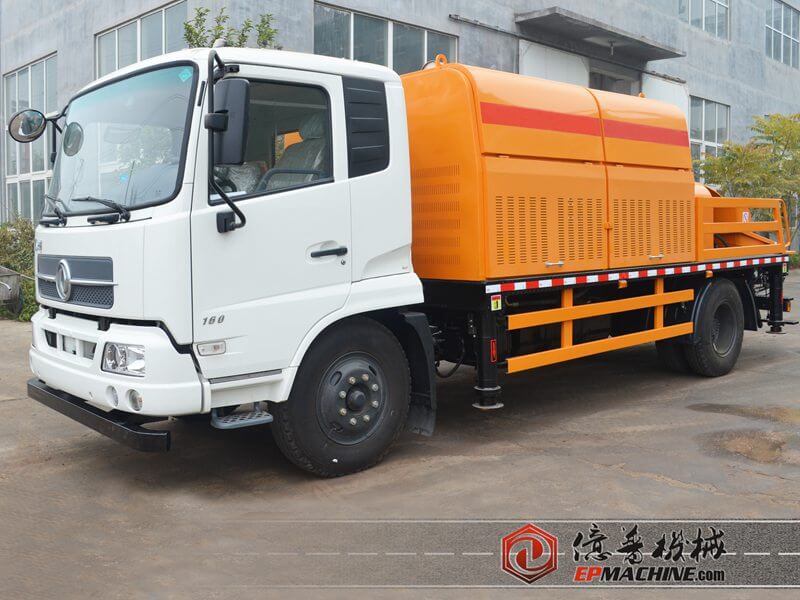

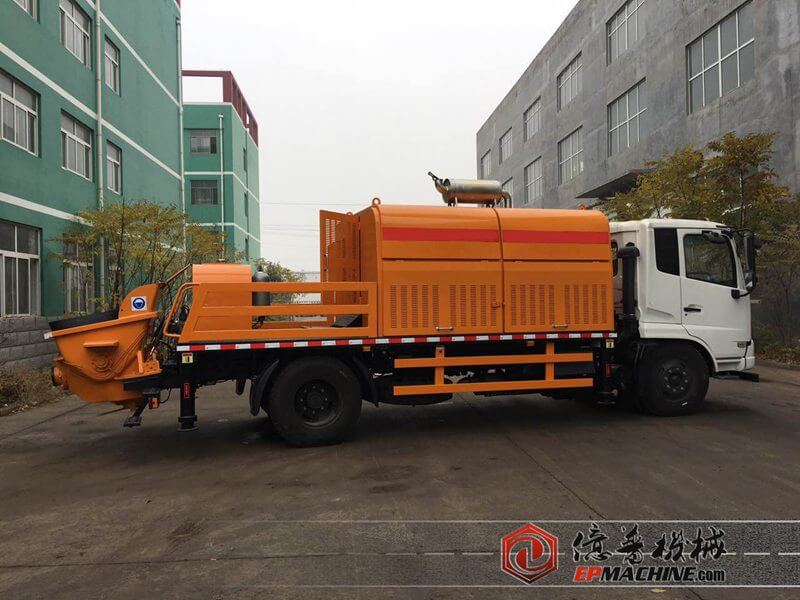

Truck Mounted Concrete Pump

Application range:
Truck mounted concrete pump combines the superiority of trailer-mounted concrete pump and concrete boom pump truck. It is more flexible and mobile than trailer-mounted concrete pump.

We're here to help:
Easy ways to get the answers you need.

PDF Download

description

 Brief Introduction of Truck Mounted Concrete Pump

Truck mounted concrete pump combines the superiority of trailer-mounted concrete pump and concrete boom pump truck. It is more flexible and mobile than trailer-mounted concrete pump. No need of transportation, loading and unloading, and fixed installation. Stronger pumping performance and faster pumping speed. Compared to the concrete pump truck, it enjoys the advantages of small footprint, low price, high pumping height and distance, cost-effective etc. It is suitable for small production, multi-site, complex construction environment and other conditions.

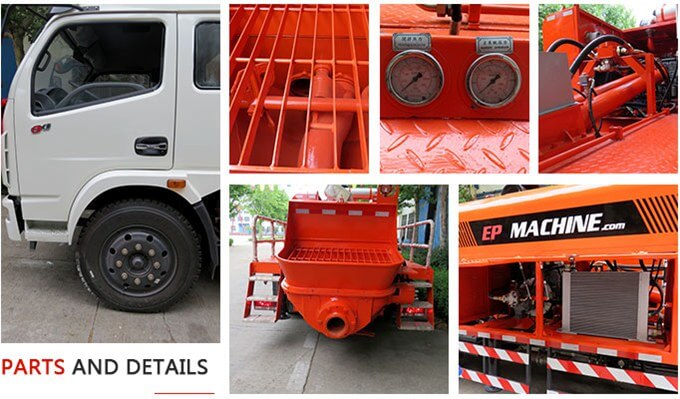

 Feature of Truck Mounted Concrete Pump

1. Hydraulic System: Adopt the double open hydraulic loops system. For the pump parts, we adopt the famous brand Rexrath. And for the vales, we adopt the brand America Eton.
2. Power system: Adopt Dalian DEUTZ and Weichai DEUTZ engine system, which has the characteristics of high cost performance, strong power, energy saving and repair timely.
3. Chassis: Adopt the domestic famous brand for the chassis, which is comfortable to drive, strong in horsepower, low in oil consumption, reliable and durable in performance.
4. Pumping system. S tube is made of high manganese steel molding, with high wear-resistant materials of the runner. Glasses plate and cutting ring adopts unique hard alloy material and technology, makes the surface hardness and toughness, increased significantly prolong service life.
5. Control system operating system: wired and wireless remote control, the operation is flexible, convenient. Adopt imported five curve of a diesel engine throttle calculation automatic control modulation, energy saving more than 20%.




 Parameter of Truck Mounted Concrete Pump

Item

Unit

HBC80.18-176RA

HBC90.18-195RA

HBC100.13-195RA

Max. theory concrete output (L./H)

m3/h

57/88

62/93

88/105

Max. concrete pumping pressure (L./H)

Mpa

18/9.6

18/9.6

9/13

Max. theory delivery distance
(vertical/horizontal)

M

350/1600

350/1600

250/1100

Distribution valve



S tube

S tube

S tube

Diesel engine model

kw

176/Weichai
DEUTZ

195/Dalian
DEUTZ

195/Dalian
DEUTZ

Rotate speed

rpm

2300

2300

2300

Main oil pump specification



Rexroth 260

Rexroth 260

Rexroth 260

Delivery cylinder dia. ×stroke

mm

Φ230×1600

Φ230×1600

Φ230×1600

Oil cylinder dia. ×stroke

mm

Φ150×1600

Φ150×1600

Φ150×1600

Lubricating system



Double pump double circuit start system

Hopper capacity

m3

0.68

0.68

0.68

Feeding height

mm

1240-1450

1250-1450

1250-1450

Capacity of oil tank

L

500

500

500

Chassis



Dongfeng

Dongfeng

Dongfeng

Dimensions
length × width × height

mm

8754×2470×3056

8754×2470×3056

8754×2470×3056

Total weight

kg

12000

12000

12000

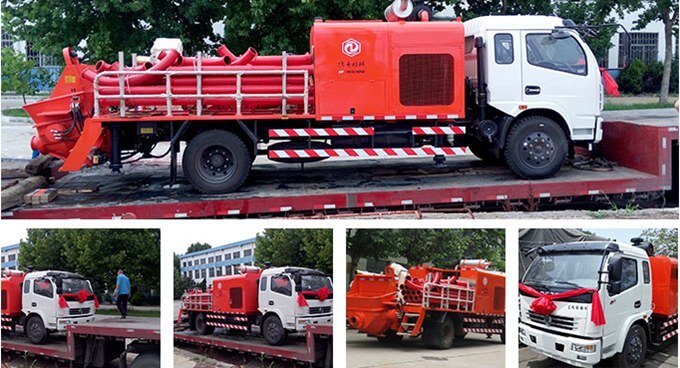

 Packaging & Shipping Of Truck Mounted Concrete Pump

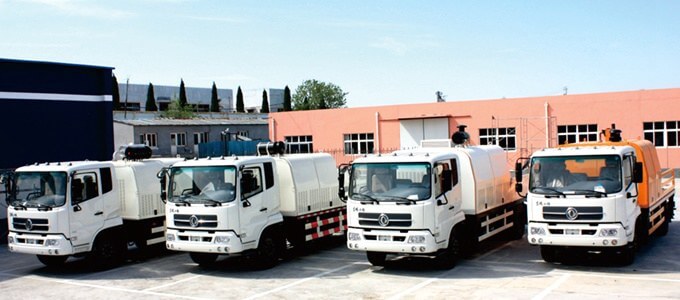

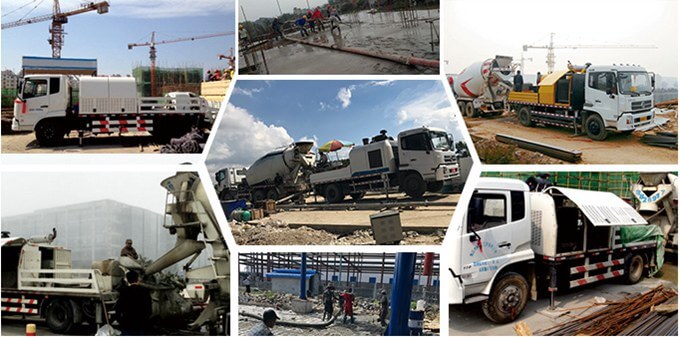

 Project Case Of Using Truck Mounted Concrete Pump

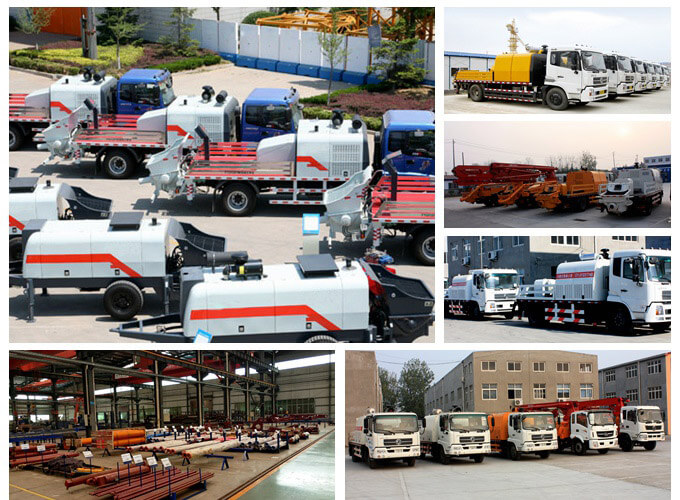

 Company Information: Factory & Workshop
