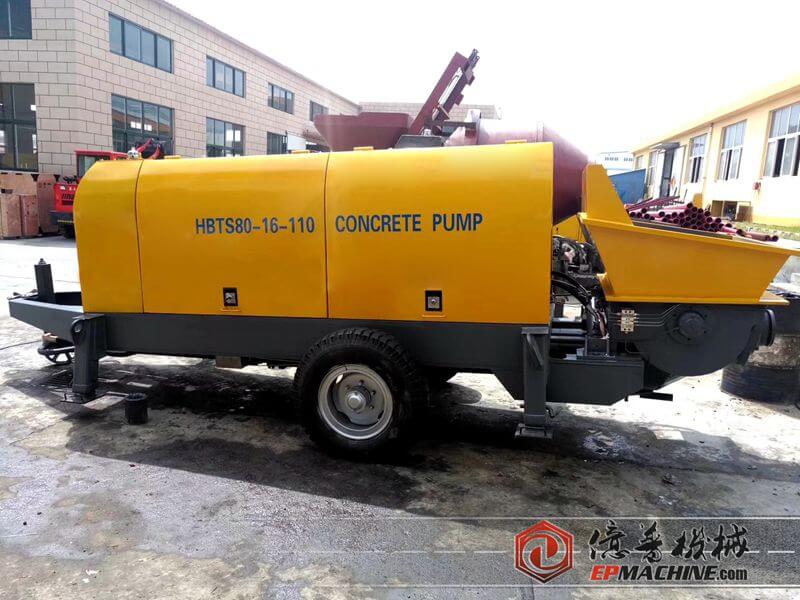

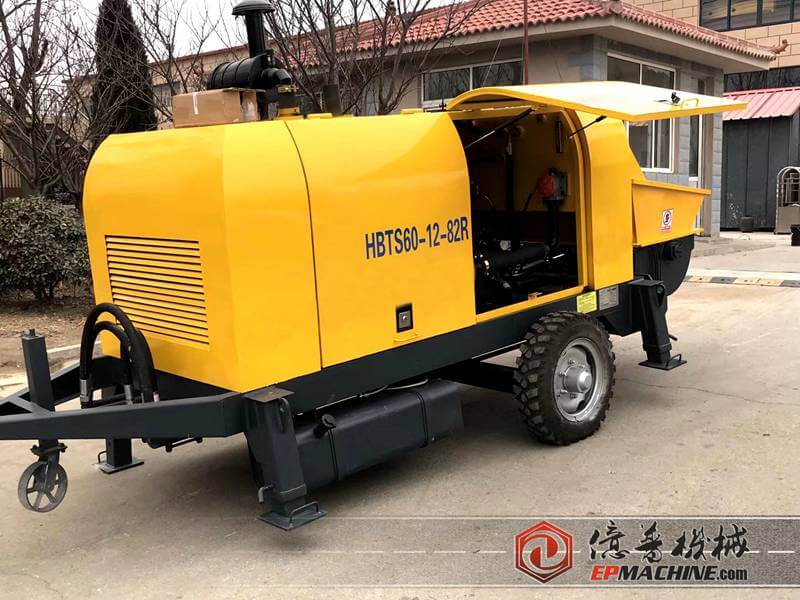

HBT Series Concrete Trailer Pump

1. Brief Introduction of Electric concrete Trailer pump

On the basis of electric commutation technology, we have developed overall hydraulic concrete pumps with excellent performance. The hydraulic system greatly improves the reliability of the machine and makes sure it can work in any hard condition. Our various motor and diesel engine concrete pumps mainly cover capacity from 30 to 120m³/h and pressure from 5 to 20Mpa.

2. Features of concrete trailer pump

Power system
For motors, adopt the domestic and world-famous brands Yantai motors or Beide motors of Siemens. For diesel engine, adopt original VOLVO or Weichai DEUTZ as the power of the pumps.
Hydraulic system
The main oil pumps, valves, rubber hose joints and seal components in big oil cylinder adopt the domestic and world-famous brands, insuring the safety and no leakage of hydraulic system.
The radiator
Radiator is air-cooled type, enabling the machine to work under the allowable highest temperature.
Electric parts
Main electric elements are from Schneider and LG, the reliability of which is highly improved.
Mechanical parts
The hopper is newly designed and welded with wear-resistant 16Mn steel; the concrete in the hopper has a good flowing and absorbency performance.
Glasses plates and cut loops
Glasses plates and cut loops are made of anti-wearing horniness alloy, they have long service lives.
Lubrication system
Centralized lubrication system adopts progressive distributor which supplies every lubrication point with oil in turn, and the oiling time can be set. So the oiling is accurate and the oil consumption can be saved.

3. Parameter of concrete delivery pump

Item		Unit	S tube concrete pump
Item		Unit	HBT40S-13-45	HBT50S-13-55	HBT60S-13-90	HBT60S-16-110	HBT80S-13-110	HBT80S-16-132
Theoretic concrete delivery volume (H/L)		m3/h	40	50	36/60	35/60	47/80	46/80
Theoretic concrete delivery pressure (H/L)		Mpa	13	13	7.6/12.5	9.6/15.7	7.6/12.5	9.6/15.7
Hydraulic pressure		Mpa	31.5	31.5	32	32	32	32
Main oil pump			Original German Hawe, Rexruth and Japanese Kawasaki or domestic brand
Electric motor power		kw	45	55	90	110	110	132
Hydraulic oil tank volume		L	300	300	500	500	500	500
Hopper capacity		m3	0.6	0.6	0.6	0.6	0.6	0.6
Maximum theoretic delivery distance	Vertical	m	180	180	180	250	180	250
Maximum theoretic delivery distance	Horizontal	m	700	700	700	1000	700	1000
Overall weight		kg	3500	3900	5000	5200	5200	5500
