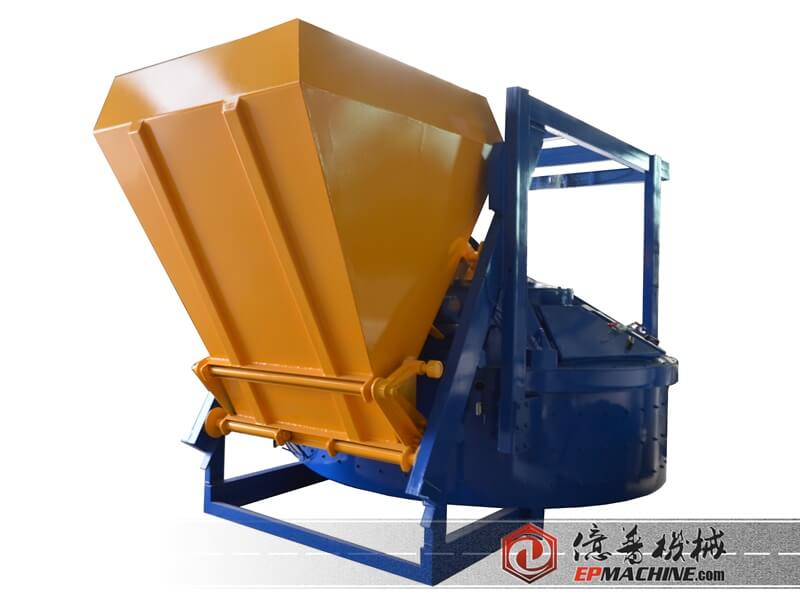

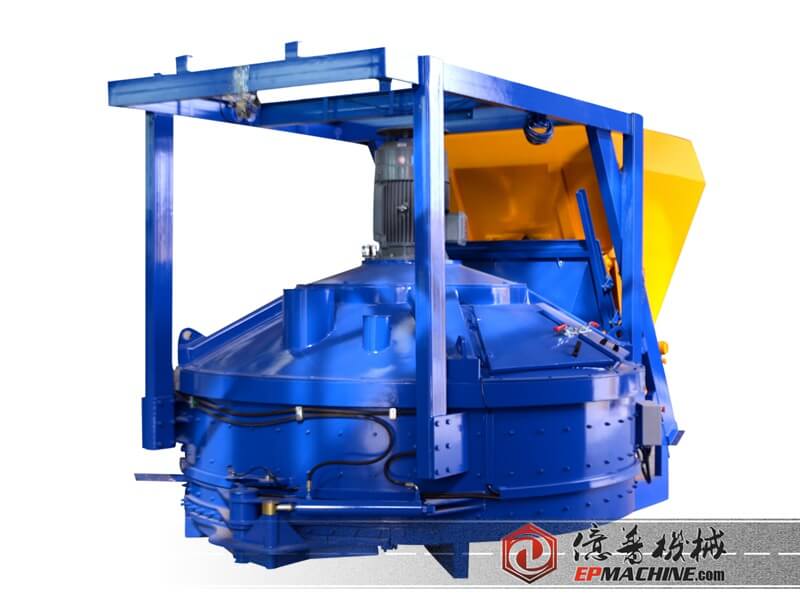

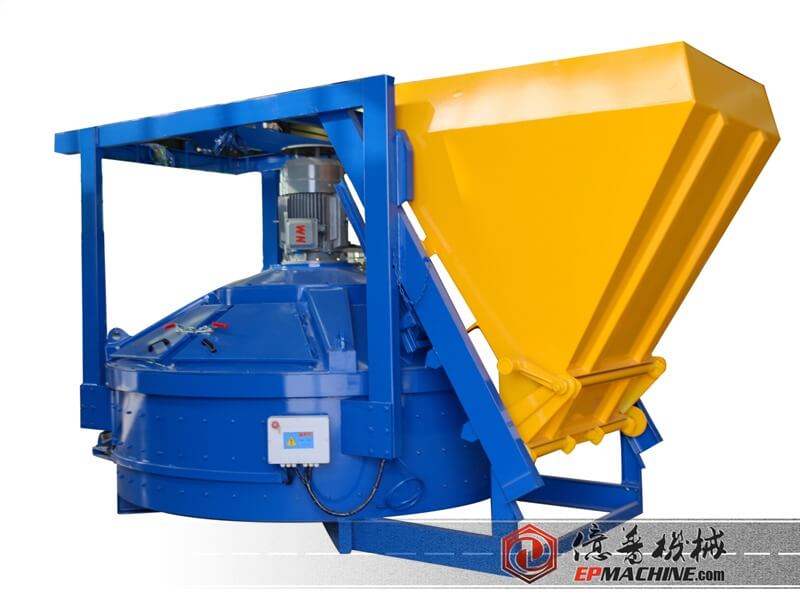

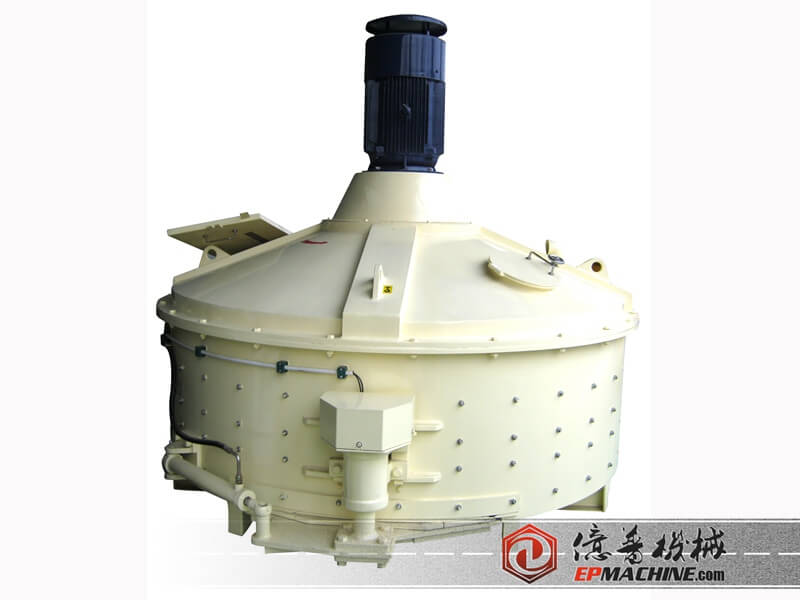

Planet type vertical shaft mixer, concrete mixer, vertical shaft concrete mixer

1. Brief Introduction of Vertical Shaft Concrete Mixer
The EP JN planetary mixers with vertical shaft allow the rapid mixing of all types of quality concrete (dry, semi-dry and plastic). The great versatility of the EP JN mixer enables it to be used not only in the production of concrete, but also in the mixing of materials for production of glass, ceramics, refractory materials, etc.

Concrete	Other building materials	Refractory materials	Other fields
• ready-mixed concrete • pre-cast concrete • cellular concrete • colored concrete • light concrete • shot concrete	• dry mortar • wet mortar • plaster • aggregate mixes • emulsified asphalt • cement blending	• shaped refractory materials • unshaped refractory materials	• glass industry • metallurgy industry • waste treatment • mining industry • coal industry
		Ceramic
		• industrial ceramic • terracotta plate

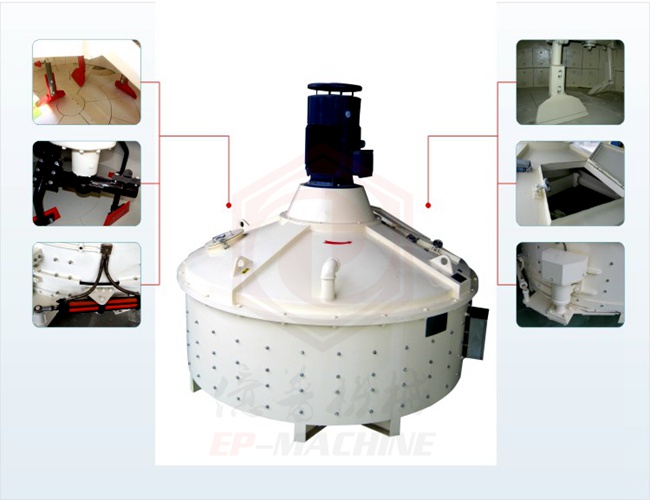

2. Features of Vertical Shaft Concrete Mixer
1. The gearbox unit, specially designed for a balanced distribution of power to various mixing device, ensures a low-noise rotation without backlash even under severe working conditions. Compared the traditional gearbox, this unit takes less space, and the maintenance space of the mixer can be enlarged 30%.
2. Equipped with a mechanical coupling and a hydraulic coupling (option), which can protect the transmission devices from overloads and impacts.
3. Ni-hard cast iron blades are more wearable. As an alternative, we also offer polyurethane blades for special requirement.
4. According to different materials, the liner and tiles can be made of cast-iron, HARDOX steel plate (Sweden original) or hard surfacing materials.

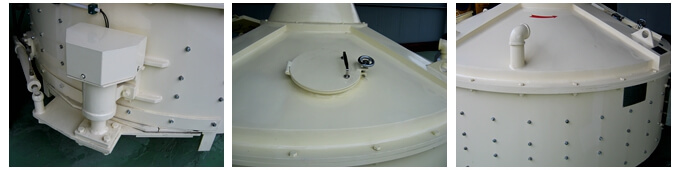

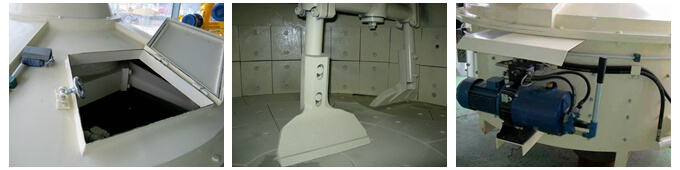

5. Large access facility is for easy maintenance and cleaning. The key-operated safety switch guarantees the motor cannot be powered with cover open.

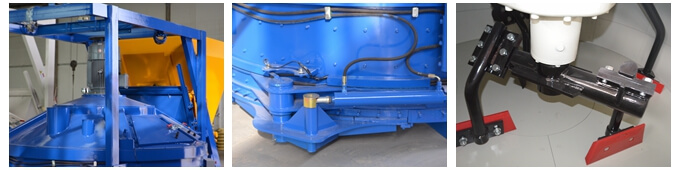

6. Hydraulic Unit equipped with manual pump allows the door be opened in case of electric failure.
7. The discharging door is equipped with limit switches, which can be opened at any angle. Maximum three discharging door are available.
8. Moisture senor and high pressure washout system can be custom-made.
9. From optimal model selection to customerized mixer for special application situation, EP can offer a full range of technical support and maintenance services.

3. Parameters of Vertical Shaft Concrete Mixer

Item Unit JN500 JN750 JN1000 JN1250 JN1500 JN2000 JN2500 JN3000

Charging Volume L 750 1125 1500 1875 2250 3000 3750 4500

Discharging Volume L 500 750 1000 1250 1500 2000 2500 3000

Mixing Power KW 18.5 30 37 45 55 75 90 110

Mixing star*Mixing blade Qty. 1*2 1*3 2*2 2*2 2*2 3*2 3*3 3*3

Side Scraper/ Discharge Scraper Qty. 1/1 1/1 1/1 1/1 1/1 1/2 1/2 1/2

Discharge Power KW 2.2 2.2 3 3 3 4 4 4

Weight KG 2500 3500 5500 6000 6500 8500 10500 11000

Item	Unit	JN500	JN750	JN1000	JN1250	JN1500	JN2000	JN2500	JN3000
Charging Volume	L	750	1125	1500	1875	2250	3000	3750	4500
Discharging Volume	L	500	750	1000	1250	1500	2000	2500	3000
Mixing Power	KW	18.5	30	37	45	55	75	90	110
Mixing star*Mixing blade	Qty.	1*2	1*3	2*2	2*2	2*2	3*2	3*3	3*3
Side Scraper/ Discharge Scraper	Qty.	1/1	1/1	1/1	1/1	1/1	1/2	1/2	1/2
Discharge Power	KW	2.2	2.2	3	3	3	4	4	4
Weight	KG	2500	3500	5500	6000	6500	8500	10500	11000
