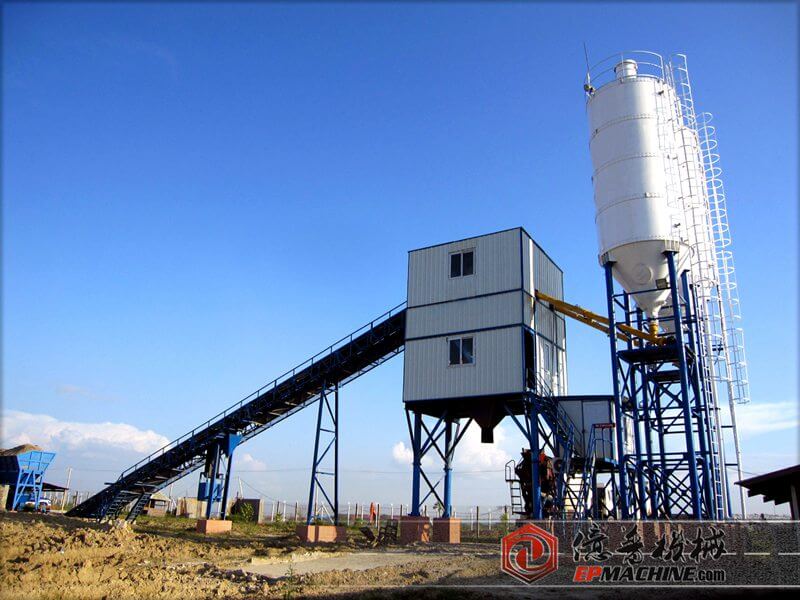

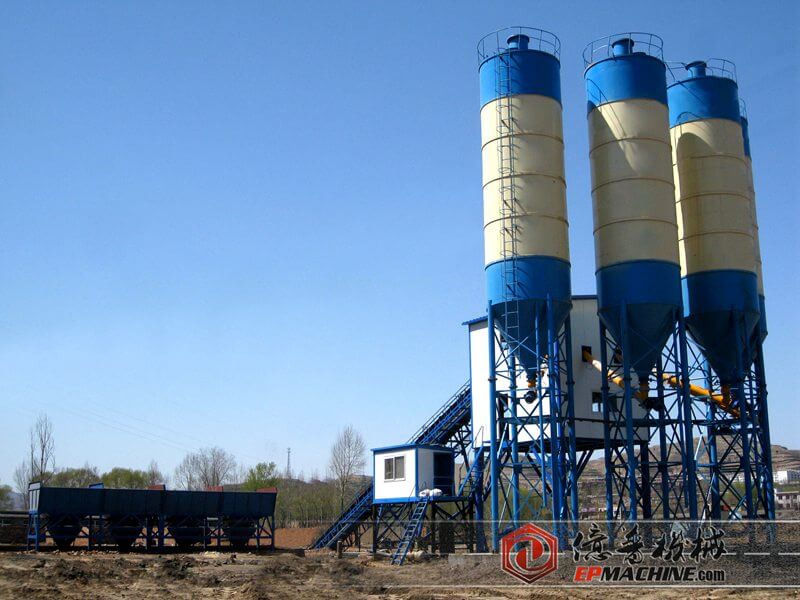

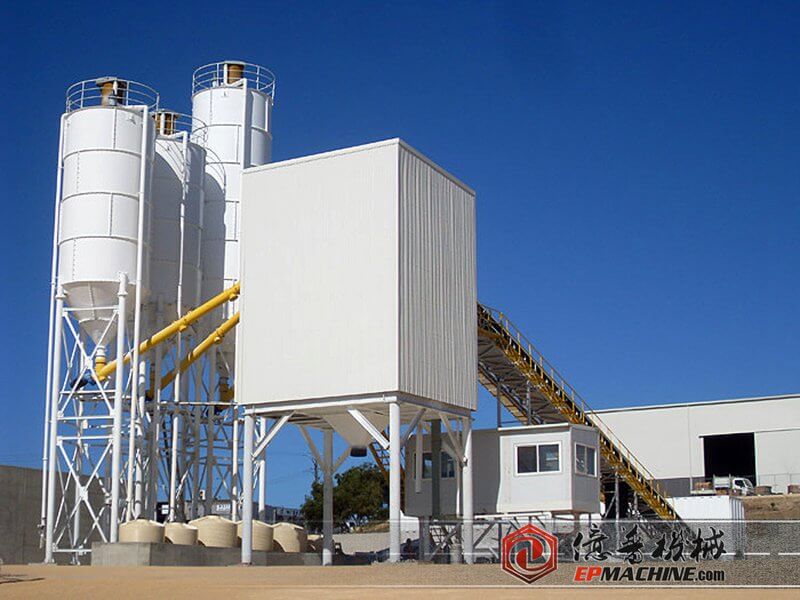

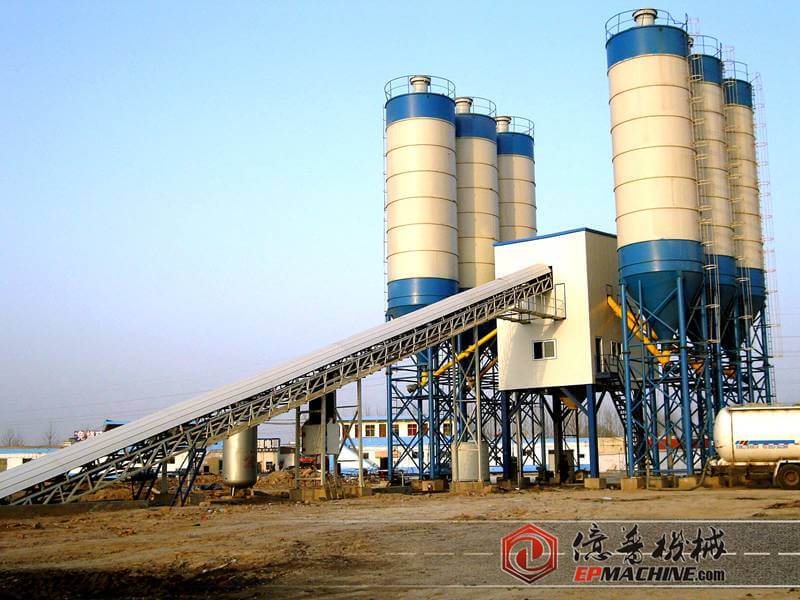

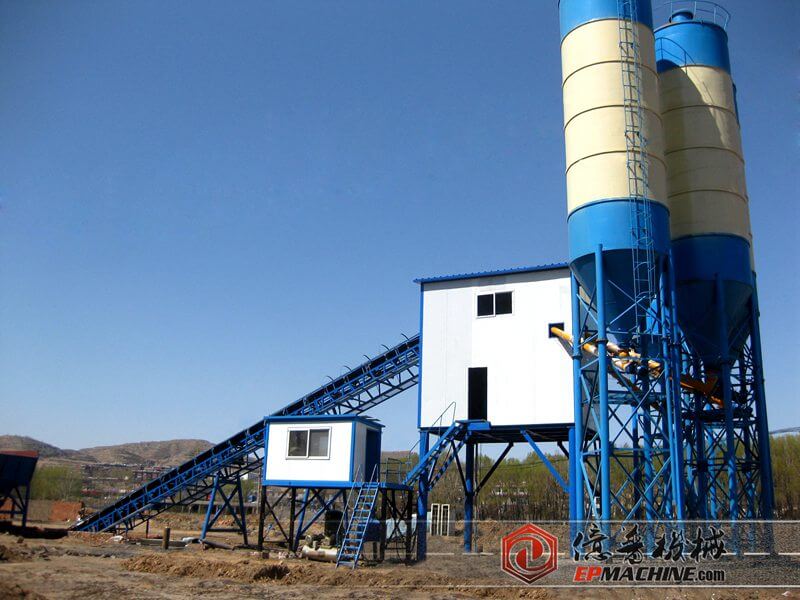

Brief Introduction of Belt Type Concrete Batching Plant

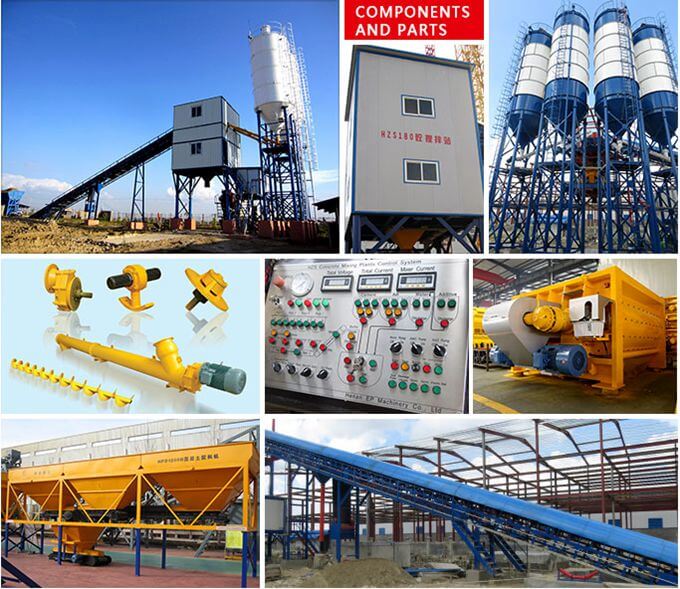

HZS series concrete batching plant (belt type) is composed of the mixing machine, material weighing system, material conveying system, material storage system, control system and other subsidiary facilities. It enjoys the benefits of large transport distance, high efficiency and low failure rate. With good mixing effect for dry, rigid, plastic and all kinds of concrete proportion, it is widely used in the long duration and site-focused large and medium hydropower project, bridges and other construction projects and commodities concrete production etc.

Features of Ready Mix Concrete Plant

1. Excellent mixing performance.
2. Highest reliable performance.
3. Unique no-sticky shaft technology.
4. Accurate measurement accuracy.
5. Accurate measurement accuracy.
6. Convenient transportation and installation.
7. Simple operating performance.
8. Good maintenance performance.
9. Excellent environment protection performance.
10. TV monitoring system.

Parameters of Belt Type Concrete Batching Plant

Model	Unit	HZS60	HZS90	HZS120	HZS180	HZS240
Theoretical productivity	m3/hr	60	90	120	180	240
Mixer model	-	JS1000	JS1500	JS2000	JS3000	JS4000
Mixing motor power	kw	37	55	2*37	2*55	2*75
Feeding mode	-	Belt conveyor
Cycling period	s	60	60	60	60	60
Max. aggregate size	mm	80	80	80	80	80
Aggregate bins capacity	m3	3*12	3*12	4*20	4*20	4*25
Discharging height	m	4.0	4.0	4.0	4.0	4.0
Aggregate weighing precision	-	±2%	±2%	±2%	±2%	±2%
Power weighing precision	-	±1%	±1%	±1%	±1%	±1%
Water weighing precision	-	±1%	±1%	±1%	±1%	±1%
Additive weighing precision	-	±1%	±1%	±1%	±1%	±1%

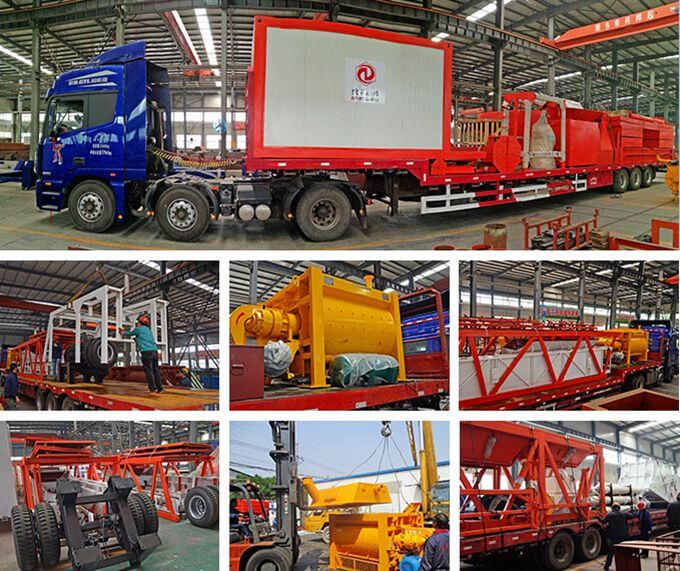

Shipment of Belt Type Concrete Batching Plant

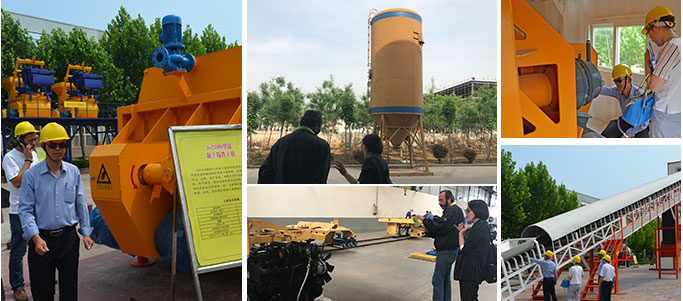

Customer Visiting EP Factory For Concrete Batching Plants

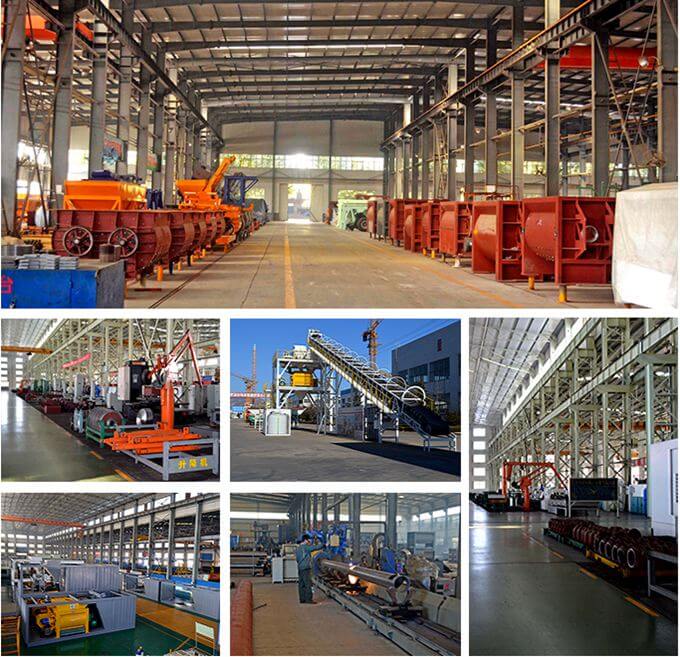

Company Information: Factory & Workshop
